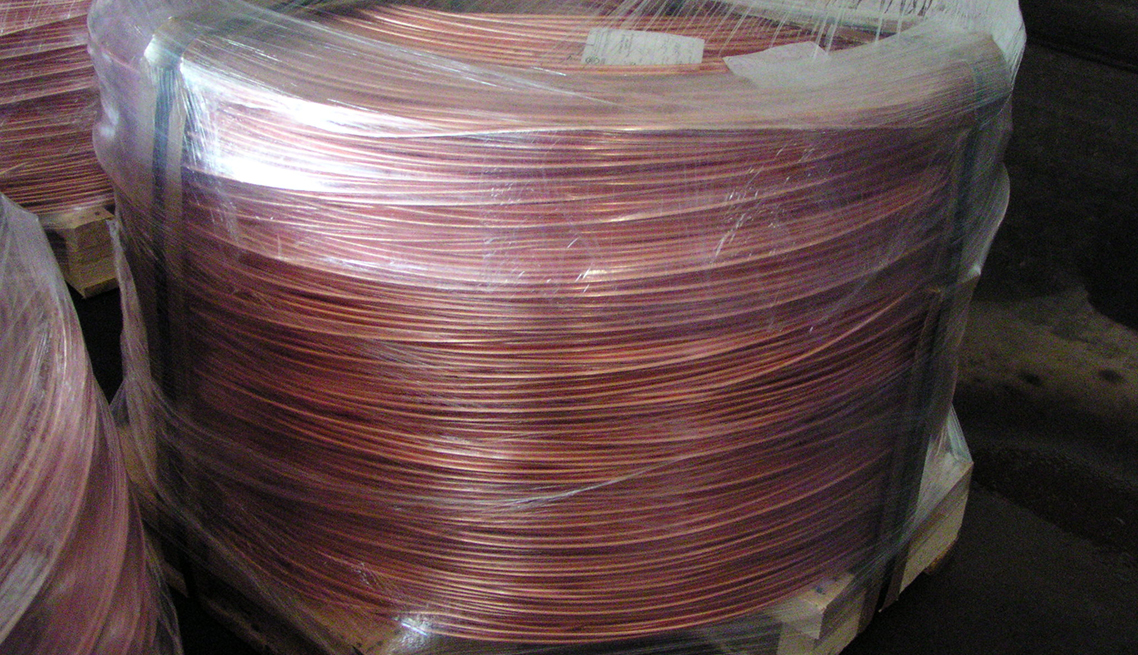

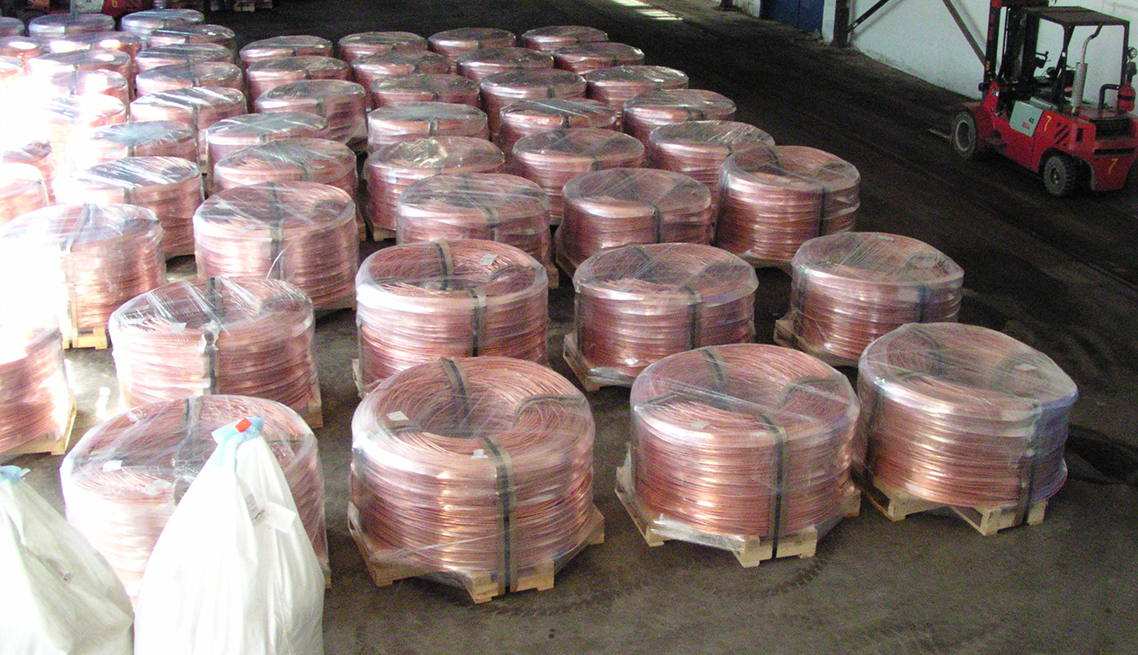

Copper Rod

We are able to supply Copper Wire Rod produced by first class manufacturers that are based in Canada, Russia, Europe, UAE, Egypt, India and other countries at competitive prices and terms.

The Copper Rod is conforming to ASTM B-49-92 and is produced from Grade A copper cathodes by continuous casting process, ensuring excellent quality rods suitable to make conductors for the manufacture of electric and communication cables.

The Copper Rod is also available in larger Diameters upon customer’s request.

Technical Data Sheet

Total Sfc. Oxide Max.	A	400
Ult. Tensile Strength Max.	(N/mm2)	227-232
Elongation Min.	%	40
Min Diameter*	mm	7.83
Max Diameter*	mm	8.15
Electrical Conductivity	Min. (IACS)	101
Oxygen Content (ppm)		230-300
25 R/F to Failure test min.		20
10/10 Twist Test		PASS
Twist To Failure MIN		40

Chemical Essay

	Fe	Ni	Pb	S	Zn	Sn	Al
PPm	2.0	1.2	0.1	1.5	2.0	0.5	0.2
	P	Si	Mn	Ag	Mg	As
PPm	0.80	0.5	0.2	10.2	0.3	0.2
	Sb	Cr	Co	Bi	Se	Te	Cd	Cu
PPm	0.1	1.0	0.2	0.1	0.3	0.5	0.1	99.9975

Contact us for more information on this product.
