We can offer Polyester Tapes to the Wire & Cable industry in the MENA region based on supplies from a reputable Indian manufacturer. We are able to supply a wide range of high quality products that completely meet our customers’ needs and requests as per the below details:

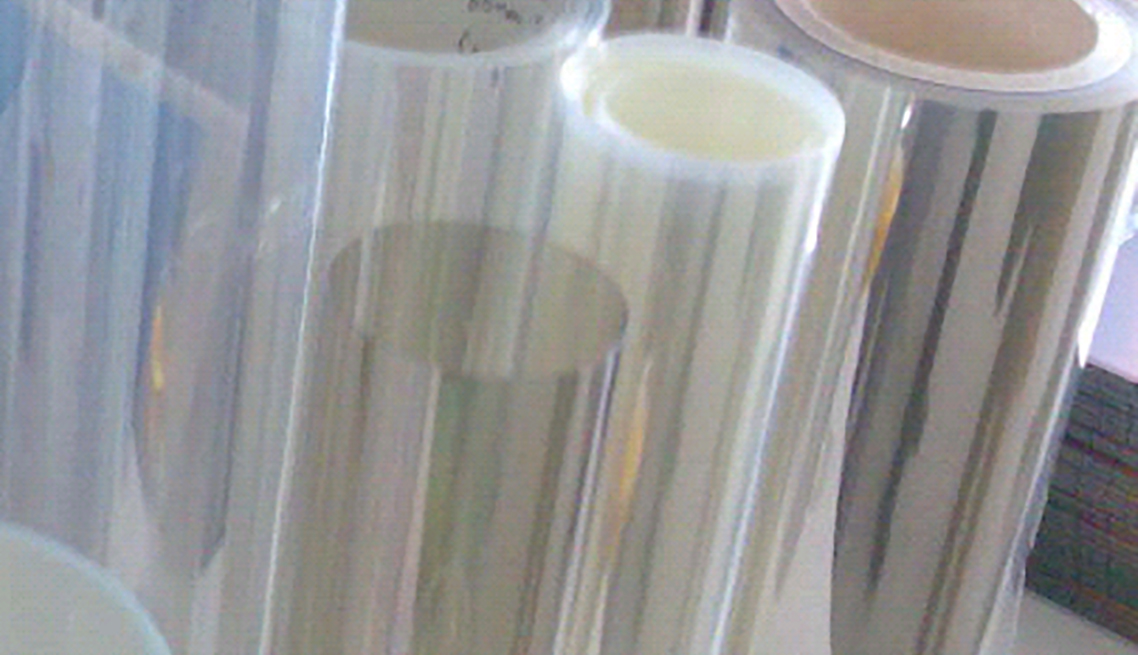

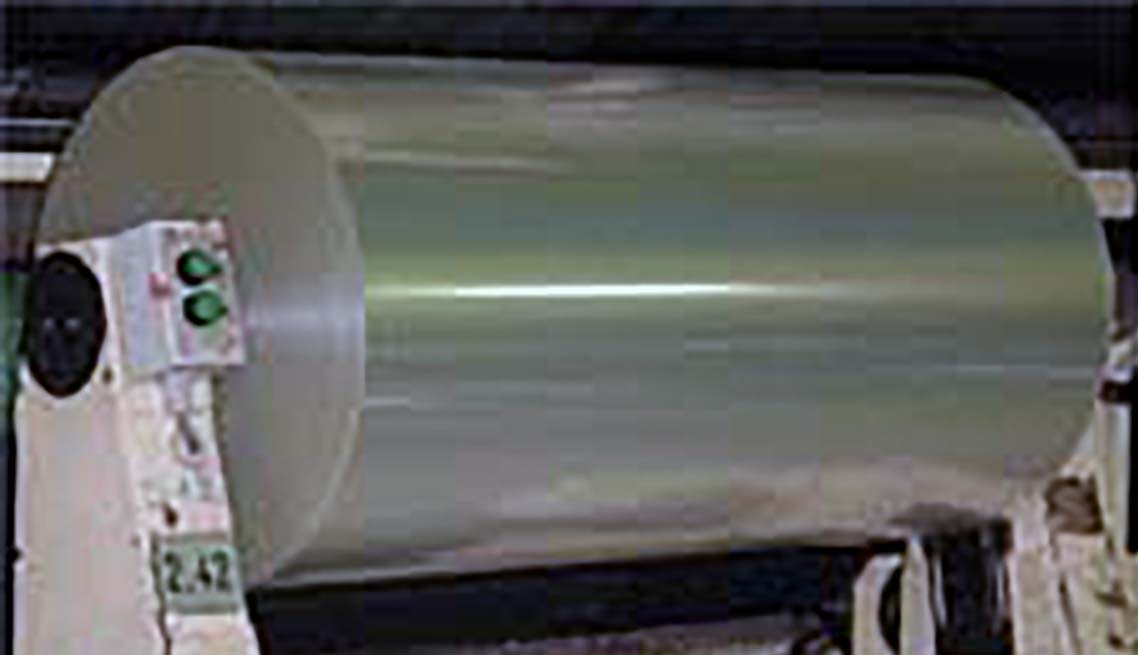

Polyester Tape
Polyester Tape
The Polyester Tape is a slightly hazy film with plain surface on both sides having excellent slip and high break down voltage. The film possesses good thermal, mechanical and surface properties along with excellent dimensional stability and complies with US FDA, EC and REACH regulations for food contact application.
Key Features:
This film is widely used for cable wrapping and other insulation applications. This film is suitable for paper lamination, roofing and other industrial applications.
Product Properties
| Property | Test Method | Unit | Typical Value | |||||||
| Physical |
Thickness |
Internal |
μ | 19 | 23 | 36 | 50 | |||
| gauge | 76 | 92 | 144 | 200 | ||||||
|
Yield |
Internal |
m2/kg | 37.6 | 31 | 19.8 | 14.3 | ||||
| ft2/lb | 183.9 | 151.62 | 96.84 | 69.94 | ||||||
|
Tensile Strength Mechanical |
MD | ASTM D-882 | Kg/cm2 | 2000 | 1900 | 1900 | 1900 | |||
| TD | 2100 | 2000 | 2000 | 2000 | ||||||
| MD | ASTM D-882 | Ib/in2 | 28500 | 27000 | 27000 | 27000 | ||||
| TD | 30000 | 28500 | 28500 | 28500 | ||||||
| Elongation | MD | ASTM D-882 | % | 100 | 110 | 110 | 110 | |||
| TD | 90 | 100 | 100 | 100 | ||||||
|
Surface |
Co-efficient of friction ( Std. Vs
Functional) |
St |
ASTM D-1894 |
– |
0.44 | 0.44 | 0.4 | 0.4 | ||
| Dy | 0.42 | 0.42 | 0.35 | 0.35 | ||||||
| Wetting tension | Plain | ASTM D-2578 | Dyne/cm | 42 | 42 | 42 | 42 | |||
| Optical | Haze | ASTM D-1003 | % | 4 | 4.5 | 6 | 7 | |||
|
Thermal |
Shrinkage @ 150 C and 30 minutes |
MD |
ASTM D-1204 |
% |
2.2 | 2.2 | 2.2 | 2 | ||
| TD | 0.4 | 0.4 | 0.4 | 0.4 | ||||||
| Electrical | Break Down Voltage | ASTM D 149 | KV | 6 | 7 | 8 | 10 | |||
